NLT LCD SCREEN NL192108BC18-06F | |
manufacturer | NLT |
Model Name | NL192108BC18-06F |
screen size | 15.6 inch |
Screen type | a-Si TFT-LCD , LCM |
Resolution | 1920(RGB)1080, FHD, 141PPI |
Pixel configuration | RGB Vertical Stripe |
Display size | 344.16(W)193.59(H) mm |
physical dimension | 363.8(W)215.9(H) 16.2(D) mm |
Visual size | 347.55(W)196.75(H) mm |
surface treatment | Antiglare, Hard coating (3H) |
Brightness | 1500 cd/m² (Typ.) |
Contrast | 750:1 (Typ.) (TM) |
Best angle | Symmetry |
Optical mode | UA-SFT, Normally Black, Transmissive |
Viewing angle | 88/88/88/88 (Typ.)(CR Greater than or equal to 10) |
Responding time | 15/15 (Typ.)(Tr/Td) |
Number of color | 16.7M 40 percent NTSC |
Backlight type | 4 strings WLED , 50K hours , Without Driver |
Panel weight | 1.05/1.15Kgs (Typ./Max.) |
Apply to | Industrial / Outdoor High Brightness |
Refresh rate | 60Hz |
Touch function | No touch |
signal system | eDP (2 Lanes) , HBR1 (2.7G/lane) , 40 pins Connector |
Supply voltage | 3.3V (Typ.) |
Maximum rating | Operating Temp.: -30 85 degree ; Storage Temp.: -40 85 degree |

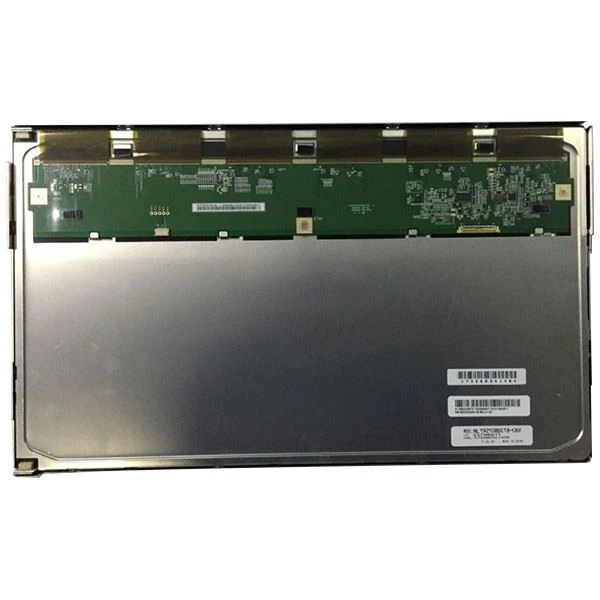

NL192108BC18-06F Original 15.6 inch LCD screen | |
Conseils
Produit accepté:
1: chaque pièce/ensemble de LCD et module sera testé professionnellement et rigoureusement pour s'assurer qu'il convient à votre appareil.
2. Si le produit est défectueux, veuillez nous en informer dans les 7 jours suivant la réception. Pour vous fournir un service après-vente satisfaisant.
Si vous avez besoin d'une production de masse, veuillez nous contacter pour plus de réductions.
Merci!
Q: If I order NL192108BC18-06F now,when will you ship the goods ?
A: The order will be shipped within 1-2 working days after received your payment.
Q: How to make payment for NL192108BC18-06F ?
A: We accept T/T , Paypal , western union .
Q: How can I trace my order of NLT NL192108BC18-06F ?
A: we will give you tracking number then you can trace your order form website.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
